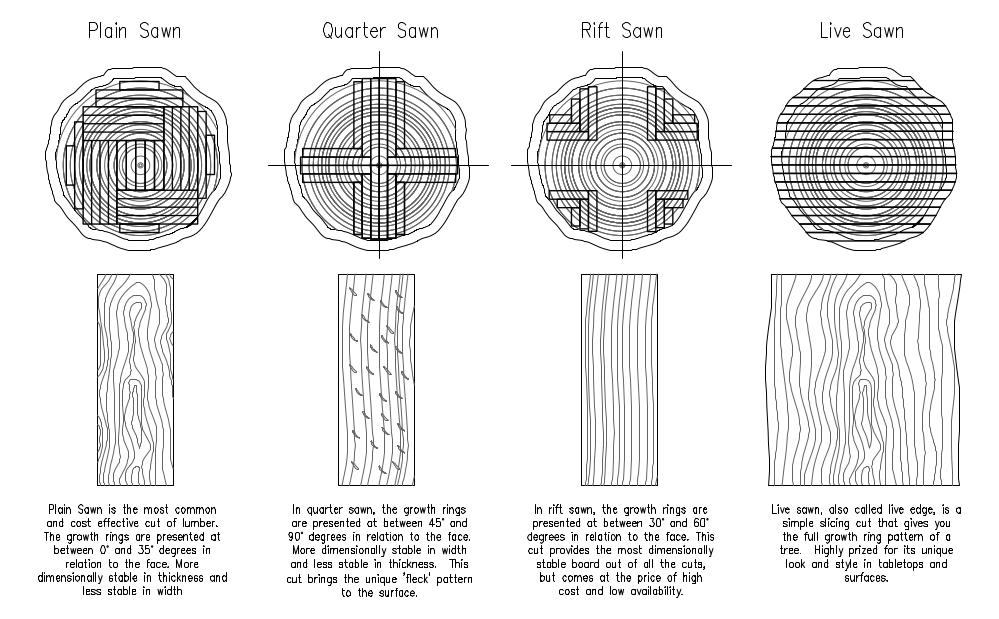

LUMBER CUT TYPES


NOMINAL VS ACTUAL

We have all heard someone say the phrase 'I need a 1 X 6' before, but what does it actually mean?   What you just heard was a nominal lumber size.   This is what the pre-dried and cut rough lumber board is pre-sized to.   When you measure the board after processing, it will measure 3/4" X 5-1/2".   Here at Bossen Architectural Millwork, we will only refer to boards by their actual size, not by nominal.   If you want a 1 X 6, we will write you up a ticket that says 3/4" X 5-1/2" to avoid confusion.   Of course, if you want a board at a true 1" X 6", we can do that to.   This is why we do not refer boards by nominal sizes, only by actual, so everyone is clear about what they are getting.

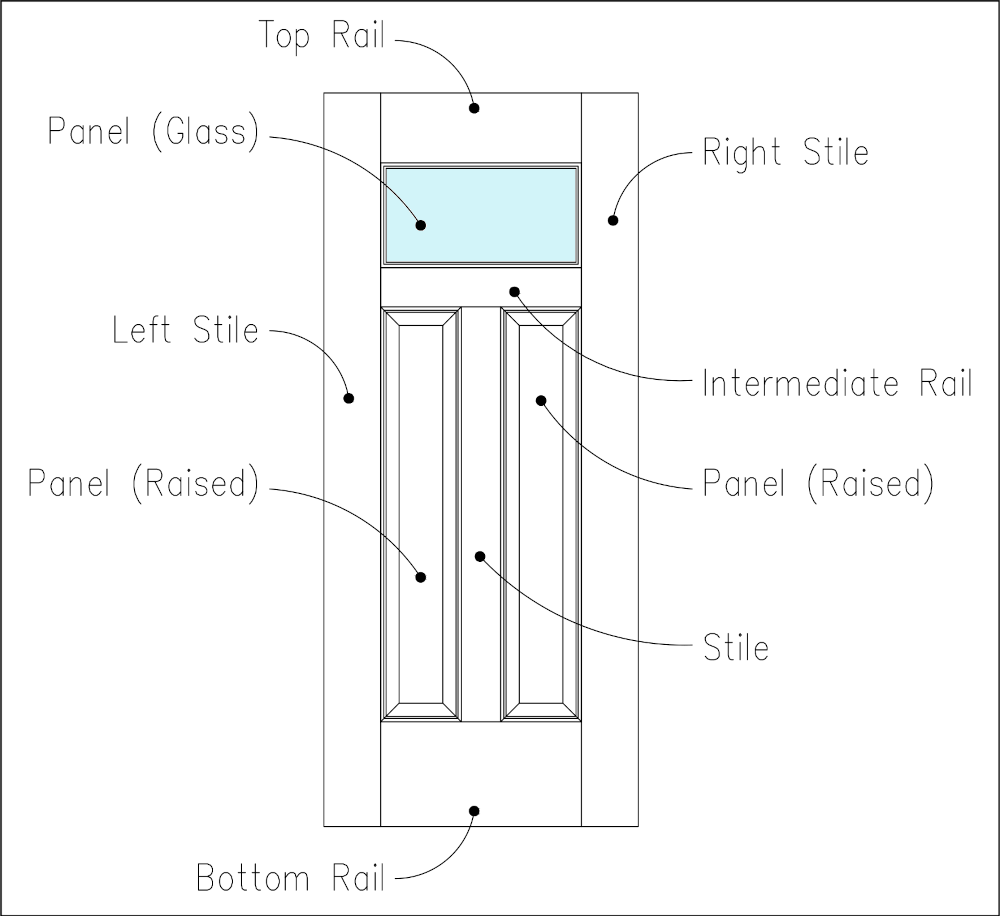

TYPICAL DOOR PARTS

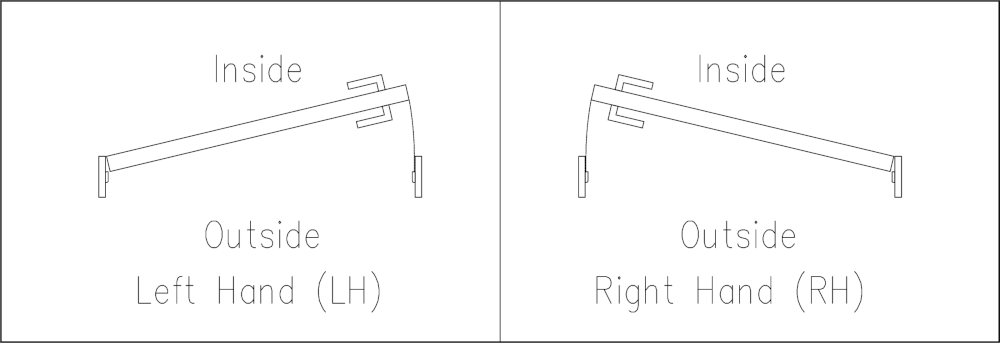

DOOR SWINGS

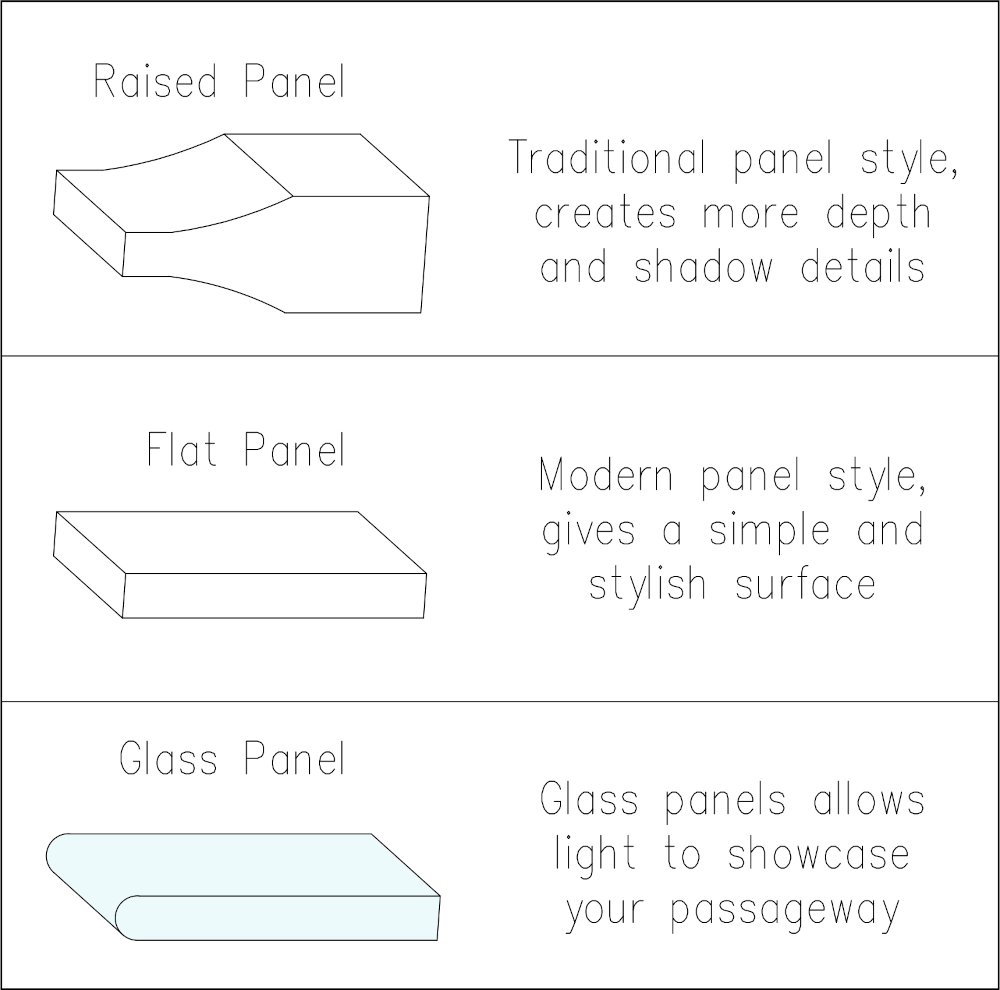

DOOR PANEL TYPES
